51 16 361 Replacing Right Glovebox

Necessary preliminary tasks

• Remove right GLOVEBOX  with housing
• Remove FASTENER FOR GLOVEBOX
• Remove DAMPER FOR GLOVEBOX
• Remove GLOVEBOX LIGHT
• If necessary, remove hotel setting switch

If the replacement fuse chart (supplied with the new glovebox) does not match to the original fuse chart,

• Continue to use the original fuse chart.
• Dispose of the replacement fuse chart.

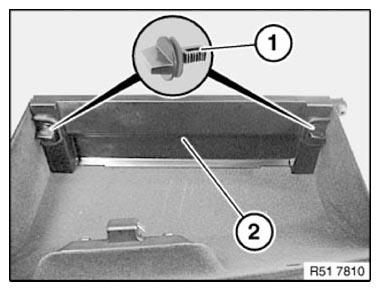

Release clips (1) and remove cover (2).

Fig 1: Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all dummy platers.

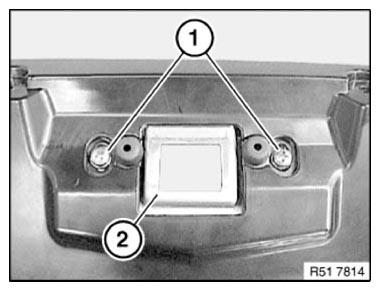

Release screws (1) and remove locking catch (2) from glovebox housing.

Fig 2: Locking Catch And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
