22 11 011 Replacing left engine mount (N54) AWD

Necessary preliminary tasks

• Secure engine in INSTALLATION POSITION .
• Remove LEFT ENGINE SUPPORT ARM .
• Remove UNDERBODY PROTECTION .

Release screws (1) and remove engine mount.

Tightening torque: 22 11 1AZ .

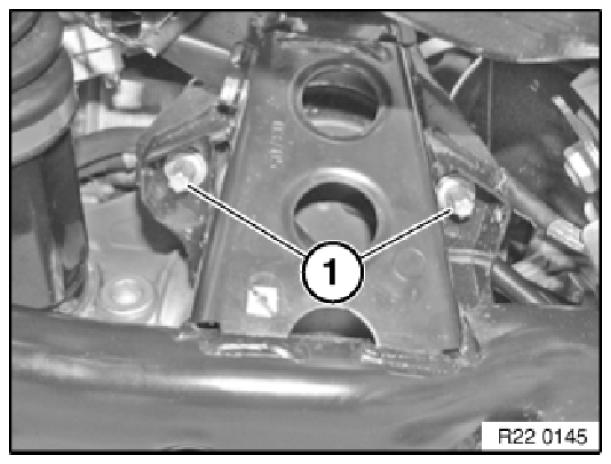

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber section (1) of engine mount must point to middle of vehicle.

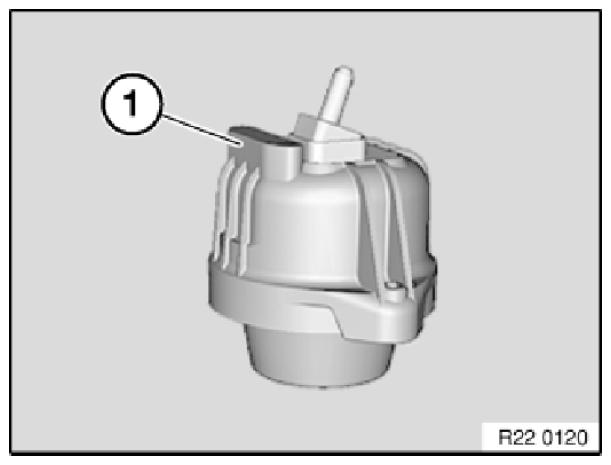

Fig 2: Identifying Rubber Section

Courtesy of BMW OF NORTH AMERICA, INC.
