22 11 110 Replacing left engine support arm (N54)

Necessary preliminary tasks

• Secure engine in INSTALLATION POSITION .
• Remove AIR INTAKE FILTER HOUSING .
• Remove CHARGE AIR DUCT .

Release grounding strap (1) from engine support arm.

Release screw (2) and remove bracket.

Release screws (3).

Remove engine support arm.

Tightening torque: 22 11 3AZ .

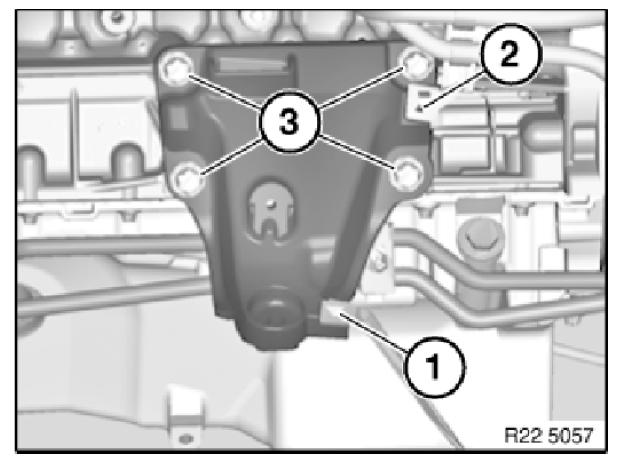

Fig 1: Identifying Grounding Strap And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
