11 22 500 Removing and installing/replacing flywheel (N55)

Special tools required:

IMPORTANT: Aluminum screws/bolts must be replaced each time they are released .
Aluminum screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminum screws/bolts are not magnetic .
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

Necessary preliminary tasks

Remove transmission. See 24 00 030 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (GA6HP19Z) N54/N55 , 28 00 001 REMOVING AND INSTALLING TWIN-CLUTCH GEARBOX (GS7D36SG) N54, N55 , 23 00 028 REMOVING AND INSTALLING TRANSMISSION (GS6-45BZ) N55 , 23 00 028 REMOVING AND INSTALLING TRANSMISSION (GS6-45BZ) N55 4WD , 23 00 018 REMOVING AND INSTALLING TRANSMISSION (GS6-53BZ) N54 or 23 00 018 REMOVING AND INSTALLING TRANSMISSION (GS6-53BZ) N54 4WD .
Remove CLUTCH .

Automatic transmission

Secure flywheel (1) with special tool 11 9 260 .

Unfasten flywheel bolts.

Tightening torque: 11 22 1AZ .

Installation note:

Flywheel (1) is secured with an dowel pin.

Fig 1: Loosening Flywheel Bolts

G09844977

Courtesy of BMW OF NORTH AMERICA, INC.

Manual gearbox

Fasten dual-mass flywheel with special tool 11 9 260 and 11 9 265 .

Release flywheel bolts with special tool 11 4 180 /

Tightening torque: 11 22 2AZ .

Installation note:

Fit new flywheel bolts.

Clean all threads for flywheel bolts in crankshaft.

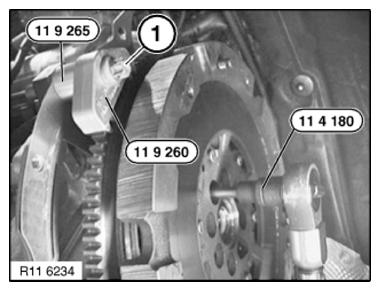

Fig 2: Releasing Flywheel Bolts Using Special Tool (11 4 180)

G09844978

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to dowel pin.

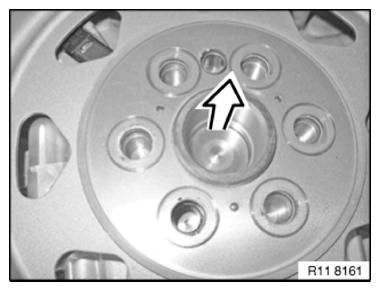

Fig 3: Locating Dowel Pin

G09844979

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Ensure installed position of magnet wheel is correct.

Fig 4: Identifying Crankshaft Magnet Wheel

G09844980

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
