51 71... Removing and installing/replacing radiator seal

WARNING: Scalding hazard!
Only perform work after engine has cooled down.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle

Necessary preliminary tasks

NOTE: Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

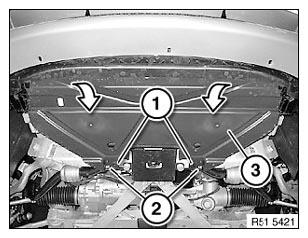

Release screws (1).

If necessary, remove underbody protection bracket.

Release catches (2) and feed out radiator seal (3) towards rear.

Fig 1: Removing Radiator Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

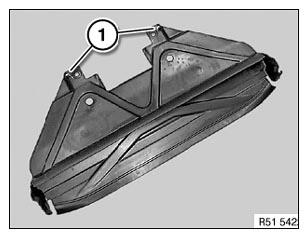

Catches (1) must not be damaged

Fig 2: Identifying Catches

Courtesy of BMW OF NORTH AMERICA, INC.
