51 47 490 Removing and installing/replacing front underbody protection

NOTE: Description is shown on the E87 by way of example. There may be differences in detail in the case of other models.

Release screws (1).

Pull underbody protection (2) forward under bumper trim (3).

Installation:

Center underbody protection (2) and tighten down screws (1).

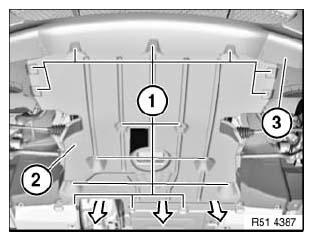

Fig 1: Removing Front Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

If necessary, modify or replace front section (1) of underbody protection
Modify sheet nuts, replace defective nuts if necessary

Fig 2: Identifying Front Section Of Underbody Protection
Courtesy of BMW OF NORTH AMERICA, INC.
