22 11 100 Replacing right engine support arm (N54)
Necessary preliminary tasks
- Remove right ENGINE MOUNT
- Remove reinforcement plate (AWD)
- Remove catalytic converters. See CATALYTIC CONVERTER, CYLINDERS 1-3 and CATALYTIC CONVERTER, CYLINDERS 4-6 .

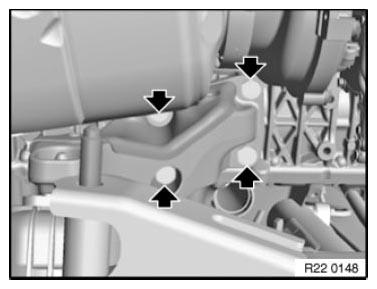

Release screws.
Remove engine support arm from engine.
Tightening torque 22 11 3AZ
NOTE:
Illustration similar.
