22 11 001 Replacing right engine mount (N54)

Necessary preliminary tasks

• Secure engine in INSTALLATION POSITION
• Remove underbody protection
• Release TIE ROD on steering gear
• Remove RIGHT V-STRUT (E93 only)

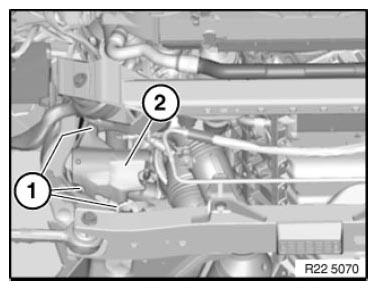

Release bolts (1).

Remove heat shield (2).

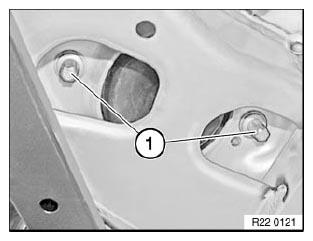

Release bolts (1) and remove engine mount towards front.

Tightening torque 22 11 1AZ .

Installation:

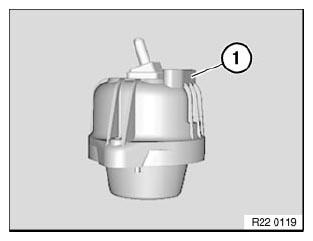

Make sure rubber (1) is correctly located.

Installation:

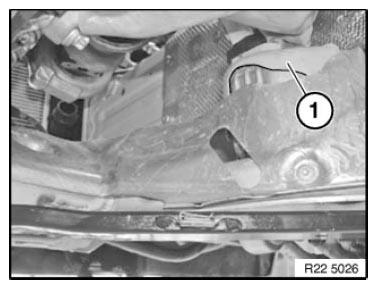

Rubber section (1) of engine mount must point to middle of vehicle.

Engine mount designations:

Right engine mount

• Even component number

Left engine mount

• Odd component number
  Fig 4: Identifying Rubber Section

  Courtesy of BMW OF NORTH AMERICA, INC.
