51 61 011 Removing and installing/replacing V-strut, front axle carrier, left or right

Necessary preliminary tasks:

• Remove FRONT UNDERBODY PROTECTION .

Unfasten screws (1) to (4).

Remove V-strut towards front.

Installation:

Replace cage nuts on screw (4).

Make sure screws are installed in correct positions.

• Screws (1) and (3) M12
• Screws (2) and (4) M10

Tightening torque 51 71 10AZ .

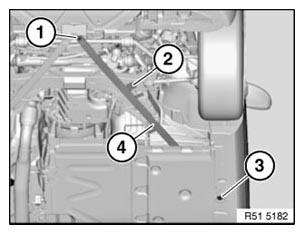

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.
