64 22 138 Removing and installing/replacing right fresh-air grille

Necessary preliminary tasks

• Remove DECORATIVE STRIP ON INSTRUMENT PANEL ON RIGHT

Lever out catches (2) and unclip right fresh-air grill (1) from right decorative strip on instrument panel (3).

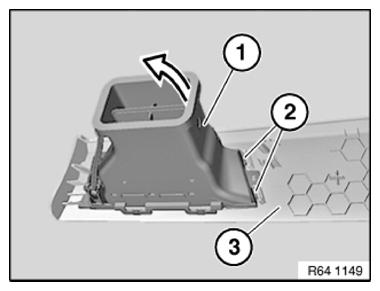

Fig 1: Removing Right Fresh-Air Grill From Right Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.
