51 45 380 Removing and installing (replacing) right decorative strip on dashboard

Special tools required:

IMPORTANT: Risk of damage!

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

IMPORTANT: Risk of damage!
Do not turn special tool 00 9 317 when levering out and pay attention to pressure marks.

Lever out decorative strip (2) from left side beginning at retaining points (1) with special tool 00 9 317 .

Press out switch for hazard warning flashers/central locking system from back and disconnect plug connection.

Disconnect plug connection from start/stop switch and remove decorative strip (2).

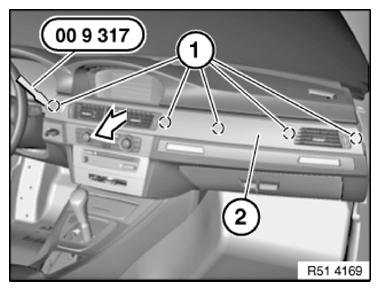

Fig 1: Removing Decorative Strip Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) must be seated in associated mounts.

If necessary, remove clips (1) remaining on decorative strip.

Replace damaged clips (1):

Turn clip (1) with slotted screwdriver to left by approx. 90°.
Lever out clip (1) from below.

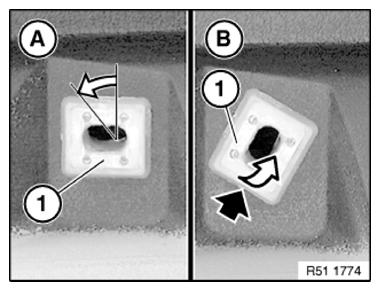

Fig 2: Turning And Removing Clip
Courtesy of BMW OF NORTH AMERICA, INC.
