64 11 378 Removing and installing/replacing heating - A/C system control panel (version with CCC/ASK and CIC)

Special tools required:

IMPORTANT: Risk of damage!

A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to shaking/shocks.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Abbreviations:

C entral I nformation C omputer (CIC)

C ar C ommunication C omputer (CCC)

A udio S ystem C ontroller (ASK)

Necessary preliminary tasks

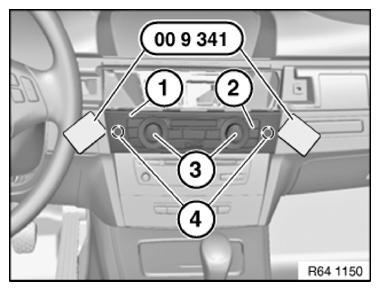

NOTE: Unclip the heater/air conditioner control panel (2) by simultaneously

Fit special tool 00 9 340 on either side as illustrated.

Unclip heater/air conditioner control panel (2) complete with trim (1) at fastening points (4) and pull back.

Fig 1: Removing Heater/Air Conditioner Control Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock associated plug connections and disconnect.

Remove heater/air conditioner control panel (2) complete with trim (1).

Replacement

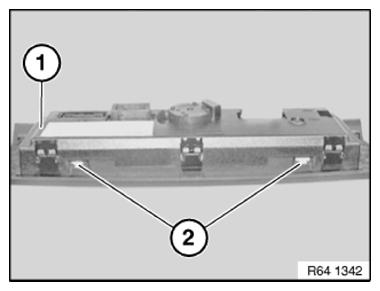

Carefully unclip control panel trim (1) at inner retaining points (2) only.

IMPORTANT: Risk of damage to control panel!

Fig 2: Identifying Control Panel Trim And Inner Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

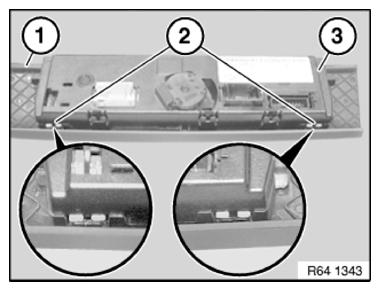

Carefully unclip control panel trim (1) at outer retaining points (2) only.

Remove trim (1) from control panel (3).

IMPORTANT: Risk of damage to control panel (3)!

Fig 3: Identifying Control Panel, Trim, And Outer Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
