51 46 050 Removing and installing/replacing top trim on rear apron
Special tools required:
Necessary preliminary tasks
- Remove TRIM FOR LUGGAGE COMPARTMENT SIDE MEMBER on left/right

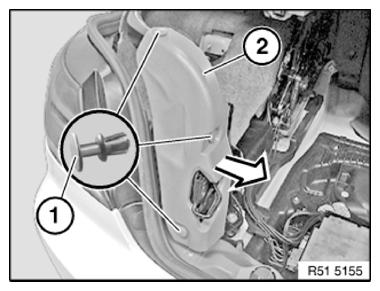

Release clips (1).
Feed out panel (2) in direction of arrow.
Installation:
If necessary, replace faulty clips (1).

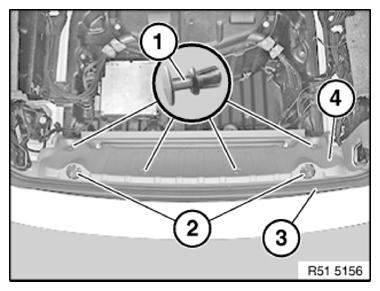

Release clips (1).
Release impact plates (2) with special tool 51 2 040 .
Feed out trim (4).
Installation:
If necessary, replace faulty clips (1).
Make sure mucket (3) is correctly seated on trim (4).
