51 47 205 Removing and installing/replacing panel for luggage compartment side member on left or right

Necessary preliminary tasks

• Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL
• Remove PANEL FOR MAIN BEARING
• Remove PANEL FOR LUGGAGE COMPARTMENT AT REAR

Left side only

• Version with CD changer:
  • Remove LUGGAGE COMPARTMENT SIDE PANEL
• Version without CD changer:
  • Remove STORAGE TRAY

Right side only

• Remove BATTERY COVER
• Remove LUGGAGE COMPARTMENT LIGHT

Release clips (1).

Lever out panel (2) from trim (3) and feed out towards inside.

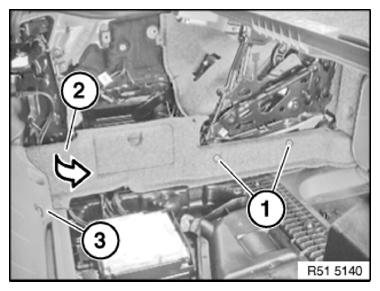

Fig 1: Identifying Panel, Trim, And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
