51 16 366 Removing and installing right glovebox with housing

Necessary preliminary tasks

Version with can holder:

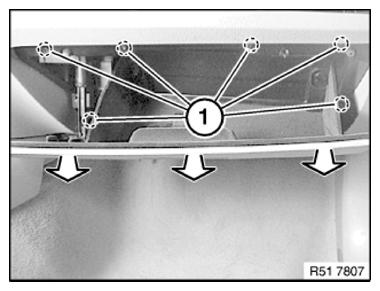

Release screws (1).

Pull out glovebox (1) slightly.

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

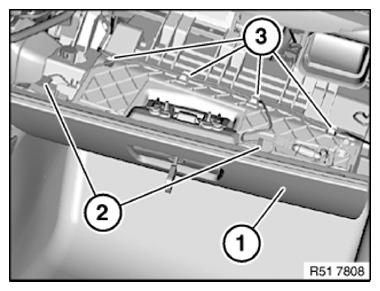

Disconnect plug connections (2) and feed cable out of guides (3).

Depending on version, disconnect further plug connections.

Remove glovebox (1).

Fig 2: Identifying Glovebox, Guides, And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

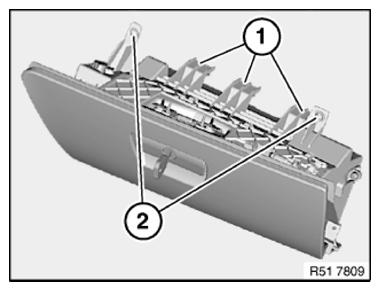

Guides (1) for glovebox must not be damaged or missing.

Version with can holder:

Guides (2) for cup holders must not be damaged or missing.

Fig 3: Identifying Guides For Cup Holder And Guides For Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.
