51 16 202 Removing and installing/replacing front (inner or outer) cup holder

Necessary preliminary work

• Remove COVER ON DASHBOARD  on right

Release the screws (1) and pull out the cup holder (2) in direction of arrow.

Replacement

REPLACE THE COVER OF THE SECOND CUP HOLDER .

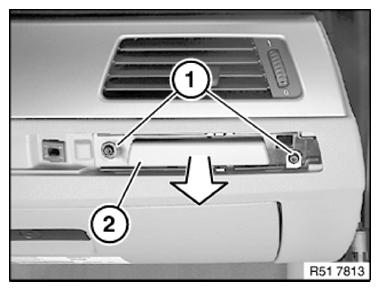

Fig 1: Removing Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.
