51 16 212 Removing and installing trim for storage compartment

Special tools required:

• 00 9 317

Necessary preliminary tasks

Version with manual transmission:

• Remove GAITER FOR GEAR LEVER

Version with automatic transmission:

• Remove FINISHER FOR PRESELECTOR LEVER

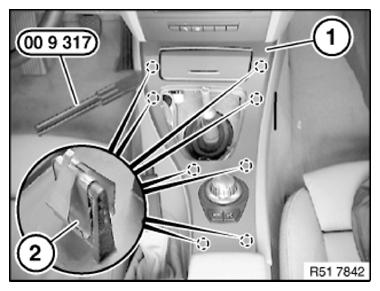

Release trim (1) with special tool 00 9 317 from retainers (2).

If necessary, disconnect plug connections and remove trim (1) towards top.

Installation:

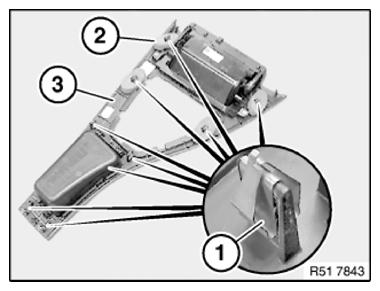

Following parts on trim (3) must not be damaged or missing:

1. Clips
2. 4 x foam material
   Fig 2: Identifying Trim, Foam Material, And Clips

   Courtesy of BMW OF NORTH AMERICA, INC.
