51 16 210 Removing and installing/replacing trim for preselector lever
Special tools required:
Necessary preliminary tasks
- Apply parking brake
- Move selector lever into N position
- Remove GAITER for shift block

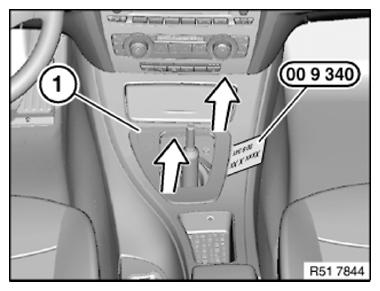

Partially fit special tool 00 9 340 as illustrated.
Lever out trim (1) all round.
Disconnect associated plug connections and remove trim (1) towards top.
Installation:

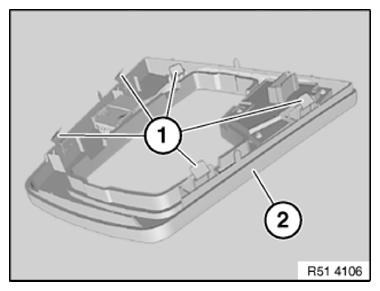

Catches (1) on trim (2) must not be damaged.
Make sure catches (1) are correctly seated in associated mountings of trim (2).
