51 45 263 Removing and installing/replacing instrument panel trim on right

Special tools required:

• 00 9 321

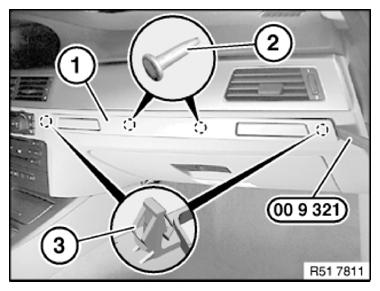

Carefully release trim (1) with special tool 00 9 321 from retainers (3) and lock pins (2).

Installation:

Clips (Hutfix) (1) must be seated in associated mountings.

Replace clips (Hutfix) (1) if they were released during removal.

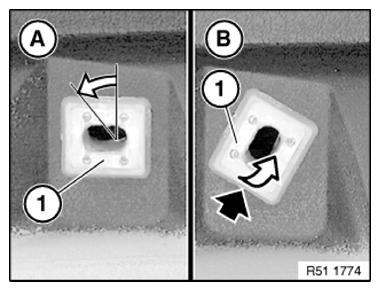

1. Turn clip (Hutfix) (1) with screwdriver to left by approx. 90°
2. Lever out clip (Hutfix) (1) from below
   Fig 2: Turning And Removing Clip

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

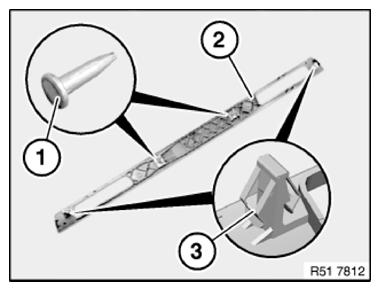

Lock pins (1) and retainers (3) on trim (2) must not be damaged.

If necessary, replace lock pins (1) and retainers (3).
