54 37 900 Additional work for hall effect sensor in roof package

Special tools required:

61 0 326

NOTE: On vehicles with a production date up to 07/2012 , during installation of a new soft top the line for the hall effect sensor or the rear left must be retrofitted.

Parts required
Number	Description	Part number	Remarks
2	Lines	e.g. 6 902 614	Length: 2 x 1.75 m Cross-section 0.5 mm² 2 different colors (color 1 and color 2 below) Alternatively, two identical colors. In this case mark the lines at the ends.
4	Bush contact	1 393 724
1	Socket housing 2-pin	6 925 634
1	Socket housing 4- pin	8 380 696

READ AND COMPLY WITH NOTES ON HANDLING WIRING HARNESSES AND WIRING!

READ AND COMPLY WITH NOTES ON CRIMPING STOPS!

Necessary preliminary work:

REMOVE TRIM PANEL FOR PASSENGER COMPARTMENT PARTITION WALL

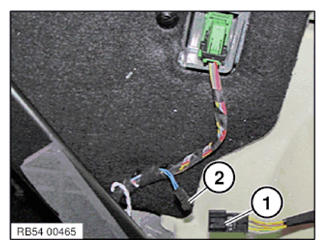

NOTE: Pin housing (1) of new soft top is 4-pin.

Unpin bush contacts from 2-pine socket housing (2) with special tool 61 0 326 .

Fig 1: Identifying Pin And Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.

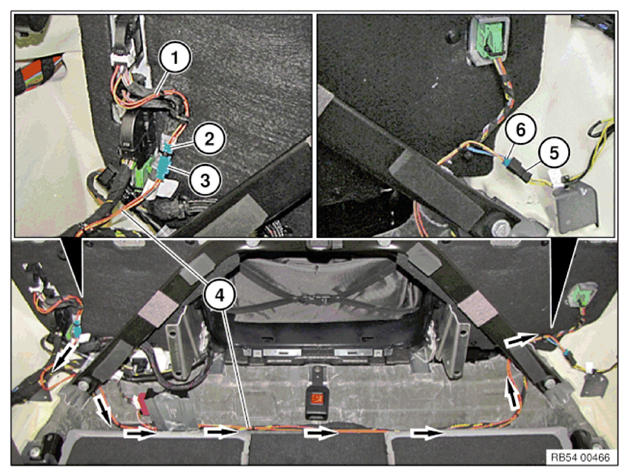

Fig 2: Identifying Crimp And Pin Lines

Courtesy of BMW OF NORTH AMERICA, INC.

CRIMP and pin lines (4) as follows:

Socket housing pin (3) 6 925 634	Bush contact	Line (4)	Bush contact	Socket housing pin (6) 8 380 696
1	1 393 724	Color 1	1 393 724	3
2	1 393 724	Color 2	1 393 724	4
Also pin lines unpinned in previous work operation:		blue/green (connector X13039 Pin 34)	fitted	2
Also pin lines unpinned in previous work operation:		Blue/Red (connector X13039 Pin 26)	fitted	1

Connect pin housing (2) of cable (1) to socket housing (3).
Route lines (4) as shown by arrows up to pin housing (5) and secure sufficiently.
Connect socket housing (6) to pin housing (5).

Perform "Conversion CTM - new sensor 'roof package stowed', left" over ISTA/P.
