51 47 143 Removing and installing/replacing panel for passenger compartment partition

Necessary preliminary tasks

Version with ski bag:

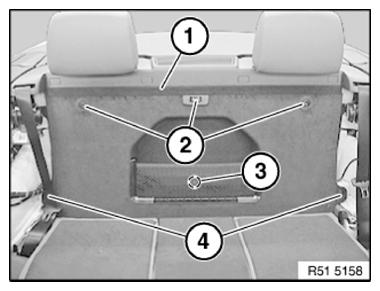

Pull off cover (1) downwards.

Unclip trims (2).

Release screw (3) and clips (4).

Fig 1: Identifying Cover, Trims, Screw, And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

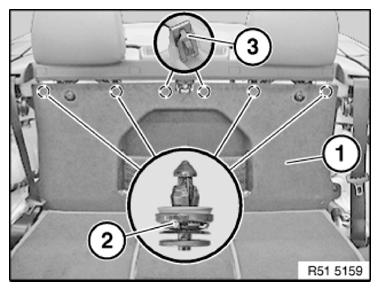

Pull panel (1) towards rear and thereby release clips (2) and retainers (3).

Feed out trim (1).

Installation:

If necessary, replace faulty clips (2) and retainers (3).

Fig 2: Identifying Clips And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

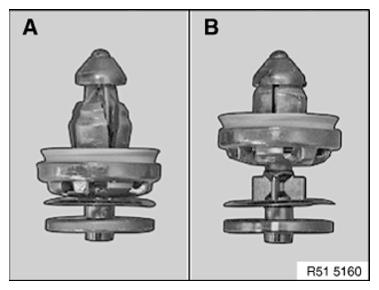

After removal clips can be in position A.

For installation clips must be in position B.

Fig 3: Identifying Removal/Installation Positions For Clips

Courtesy of BMW OF NORTH AMERICA, INC.
