63 99 437 Replacing light bulb for footwell light
WARNING:
Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .
Necessary preliminary tasks
- Remove footwell light . See 63 31 020 REMOVING AND INSTALLING/REPLACING FOOTWELL LIGHT (FOOTWELL) , 63 31 020 REMOVING AND INSTALLING/REPLACING FOOTWELL LIGHT (DOOR) or 63 31 023 REMOVING AND INSTALLING/REPLACING FOOTWELL LIGHT (ON STORAGE COMPARTMENT AT REAR) .
In footwell:

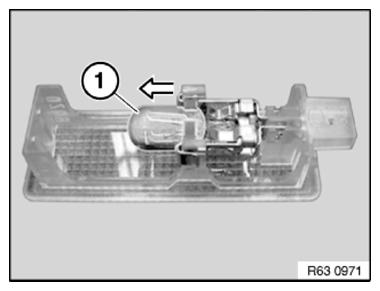

Pull bulb (1) in direction of arrow out of bulb holder.
Installation:
Note BULB TYPE .
On underside of door:

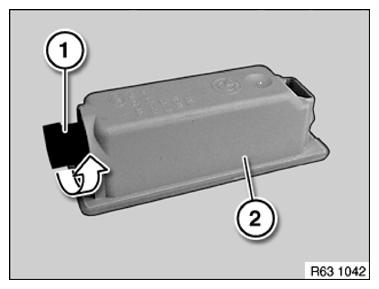

Turn bulb holder (1) in direction of arrow and pull out of luggage compartment light (2).

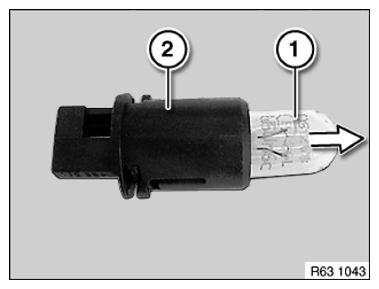

Pull bulb (1) in direction of arrow out of bulb holder (2).
Installation:
Note TYPE OF BULB .
On rear floor trim:

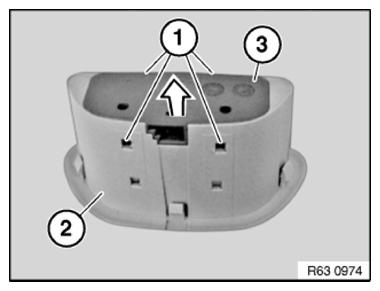

Unlock catch (1) on footwell light (2).
Open bulb holder (3) in direction of arrow.

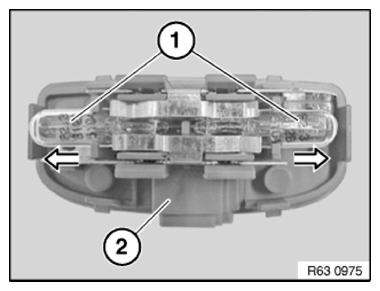

Pull bulbs (1) in direction of arrow out of bulb holder (2).
Installation:
Note TYPE OF BULB .
