51 16 213 Replacing trim for storage compartment

Necessary preliminary tasks

• Remove TRIM FOR STORAGE TRAY
• Modify INSERT FOR CENTER CONSOLE

Version with controller:

• Modify CONTROLLER

E93 only:

• Modify SWITCH FOR CONVERTIBLE TOP OPERATION

Version without controller:

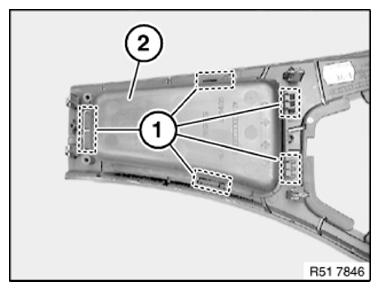

Carefully release catches (1) and remove storage tray (2).

Fig 1: Identifying Storage Tray And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
