51 16 154 Removing and installing/replacing insert for center console

Necessary preliminary tasks

• Remove TRIM FOR STORAGE COMPARTMENT

Remove foam material (1).

Release screws (2) and remove insert/ashtray (3).

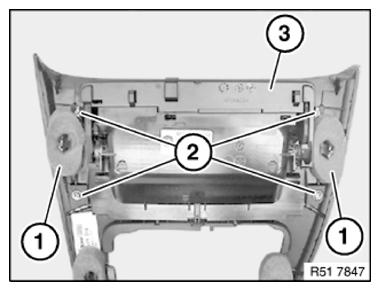

Fig 1: Identifying Ashtray, Foam Material And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
