51 71 447 Removing and installing or replacing trim panel for cover on left or right side member

Necessary preliminary tasks

Release expanding rivets (1) and screws (2).

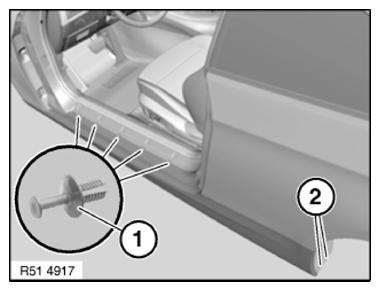

Fig 1: Identifying Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

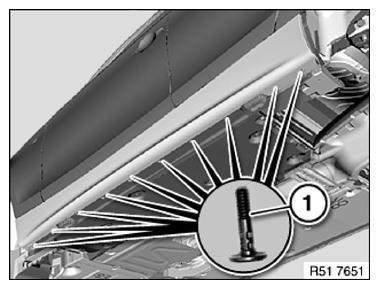

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclamp panel (1) at front.

Unclip the rear trim panel (1) at the holder (2).

Open the door and remove the trim panel (1) in direction of arrow and remove.

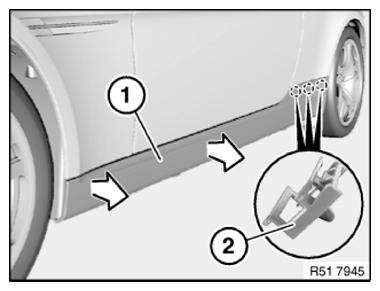

Fig 3: Removing Rear Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) on holder (2) must not be damaged.

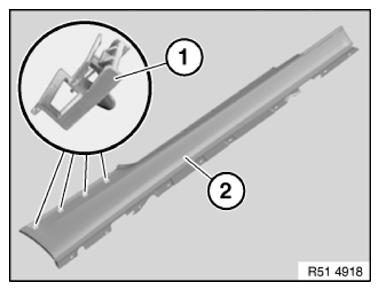

Fig 4: Identifying Holder And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If necessary, detach holders (1) from body and fit on trim panel (2).

If necessary, replace faulty holders (1).

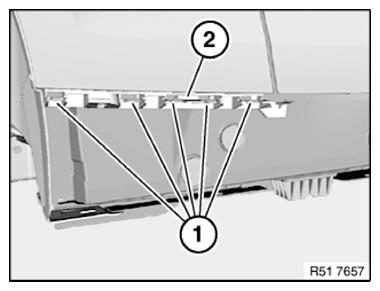

Fig 5: Identifying Trim Panel And Holders

Courtesy of BMW OF NORTH AMERICA, INC.
