51 47 065 Removing and installing/replacing finishing strip at front left or right entrance

Special tools required:

IMPORTANT: Risk of damage!
Do not raise finishing strip (2) over entire length simultaneously.

Unclip clips (1) for finishing strip (2) with special tool 00 9 317 .

Remove finishing strip (2).

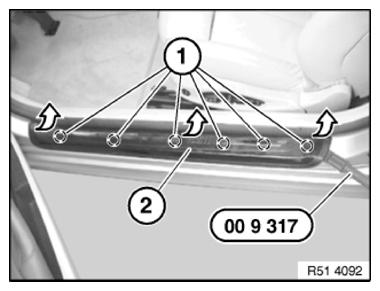

Fig 1: Removing Finishing Strip Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).

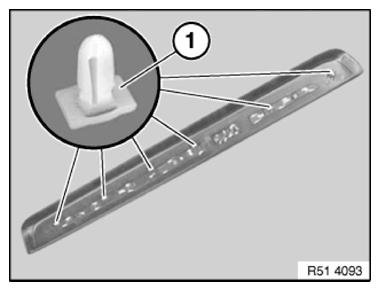

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.
