51 11 055 Removing and installing/replacing support for front bottom bumper panel

Necessary preliminary work

Remove impact absorber (1).

Mark top side on support (3).

Release screws (2) and remove support (3).

Tightening torque 51 11 5AZ .

Installation note:

Install support (3) with marked side towards top.

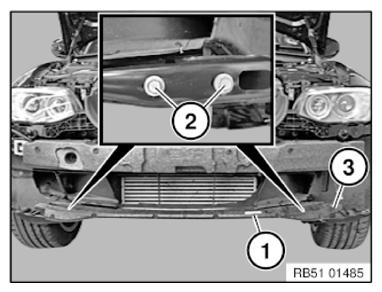

Fig 1: Identifying Impact Absorber, Support, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
