51 11 156 Removing and installing front bumper trim

Necessary preliminary tasks

Version with headlight washer system:

Release screws (1) on bumper trim (2).

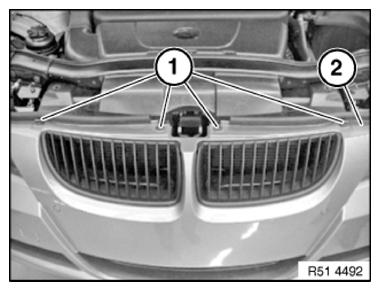

Fig 1: Identifying Bumper Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on wheel arch trim (2) on left and right.

Lift out wheel arch trim (2) at side.

Installation:

Make sure wheel arch trim (2) is in correct position.

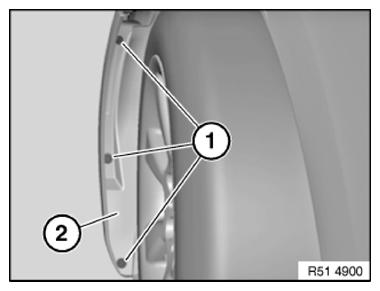

Fig 2: Identifying Wheel Arch Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Press wheel arch cover (1) to one side.

Release left and right screws (2).

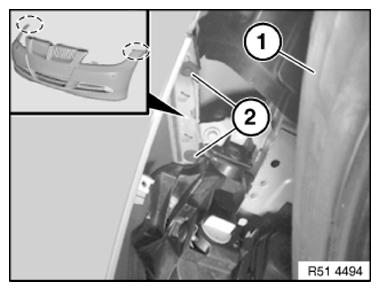

Fig 3: Identifying Wheel Arch Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on bumper trim (2).

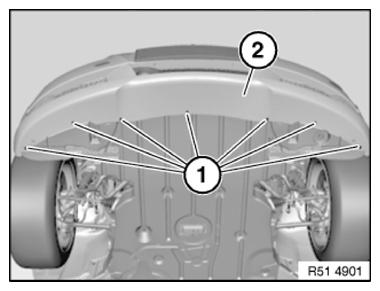

Fig 4: Identifying Bumper Trim Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage bumper trim when pulling off.

Detach bumper trim (1) at sides.

Pull bumper trim (1) forwards slightly and if necessary disconnect plug connections on ultrasonic sensors and/or fog lights.

Remove bumper trim (1) towards front with aid of a 2nd person.

Installation:

Height adjustment, refer to 41 00... BODY GAP DIMENSIONS .

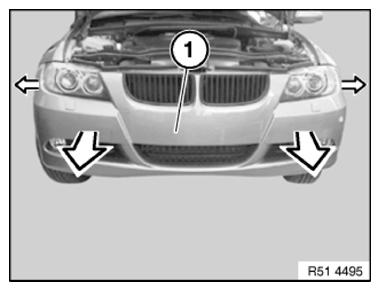

Fig 5: Removing Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
