17 12 010 Removing and installing/replacing coolant pipe on front axle (N52K)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks: Remove intake filter housing. See 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE FILTER HOUSING (N52K) . Drain coolant .

Release screws (1). Tightening torque 17 10 5AZ. Unfasten and detach coolant pipe from expansion tank (2). Unfasten and detach coolant pipe from coolant thermostat (3). Unfasten and detach coolant pipe from coolant hose (4). Feed out coolant pipe and remove.

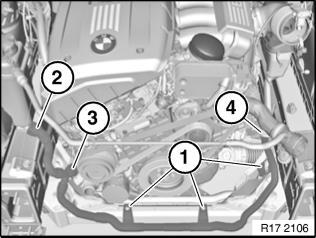

Fig 1: Replacing Coolant Pipe On Front Axle

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine. Top up coolant . Check cooling system for leaks .
