17 00 008 Draining and adding coolant (N52K)
These tasks on the cooling system should only be carried out on an engine that has cooled down!
Never reuse used coolant!
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be drained and refilled.
In the case of other removal work involving the draining of partial quantities of coolant, replace these quantities which have been drained with new coolant.
Installation:
Use only recommended coolant.See COOLING SYSTEM - OPERATING FLUIDS .
Observe mixture ratio.
Protective measures/rules of conduct
- Wear safety goggles
- Wear protective gloves
- Observe national/country-specific regulations
Risk of injury!
Catch and dispose of drained coolant in drip tray (1) and if necessary special tool 00 2 030 (universal hydraulic lifting equipment).
Recycling:
Observe country-specific waste-disposal regulations.
Necessary preliminary tasks:
- Remove front UNDERBODY PROTECTION
Draining coolant
Open cap (1) on coolant expansion tank.
Installation:
Close cap (1) until the arrow marks line up.

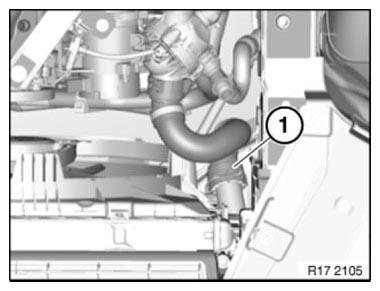

Unfasten and detach right coolant hose (1) from radiator.
Drain, catch and dispose of coolant.
Adding coolant
Use recommended coolant COOLING SYSTEM - OPERATING FLUIDS .
Observe mixture ratio.
Observe FILLING CAPACITIES .
Fill and vent COOLING SYSTEM .
Observe venting instructions without fail.
Assemble engine.
Check COOLANT SYSTEM for leaks.
