17 11 000 Removing and installing radiator (N52K, N54)

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

IMPORTANT: Wear protective goggles and gloves.

Necessary preliminary tasks:

Remove FAN COWL
Draining COOLANT
Unlock coolant hoses and detach
N54/N54T only: Remove intercooler

Only automatic transmission or twin-clutch gearbox: Release bolt and detach hose (1).

Fig 1: Identifying Hose

G04751520

Courtesy of BMW OF NORTH AMERICA, INC.

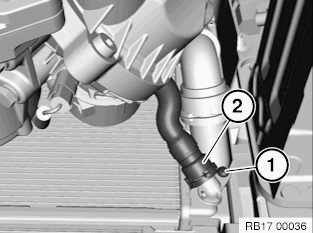

Only automatic transmission or twin-clutch gearbox: Release bolt (1) and detach hose (2).

Fig 2: Identifying Bolt And Hose

G00528968

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) on radiator on left and right.

Tightening torque 17 10 2AZ .

Unlock and detach coolant hose (2).

Fig 3: Identifying Radiator Bolts And Coolant Hose

G06904735

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out module carrier (1) on left.

Feed out radiator (2) and remove towards top.

Fig 4: Lifting Out Module Carrier

G06907885

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When reinstalling the radiator and module carrier (1), ensure without fail that the radiator is correctly seated in mounting (2).

Fig 5: Identifying Module Carrier And Radiator Mounting

G06904737

Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle.

Check COOLING SYSTEM for leaks.
