Location Of The Data Link Connector

Model: X6 xDrive50ih

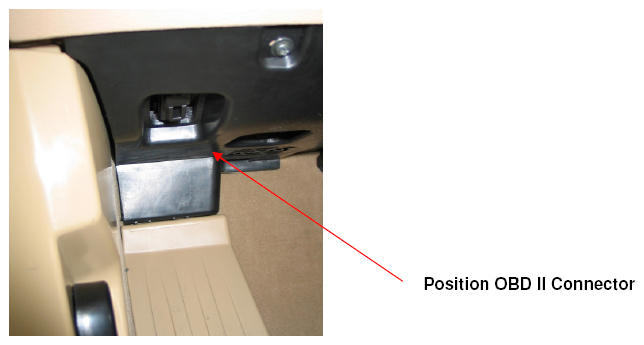

Fig 1: Identifying Position For Connecting DLC

Courtesy of BMW OF NORTH AMERICA, INC.

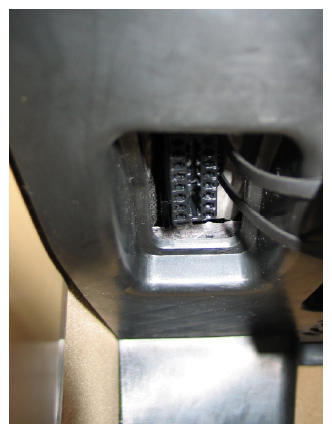

Fig 2: DLC And Removed Cover Picture

Courtesy of BMW OF NORTH AMERICA, INC.

The DLC is located on the lower left side of the instrument cluster. The cover with the letters "OBD" on it has been removed from the DLC in the photograph shown above.
