11 00 Removing and installing/replacing rear ignition coil cover (N54)

Necessary preliminary tasks:

• Remove front IGNITION COIL COVER
• Remove CLEAN AIR PIPE

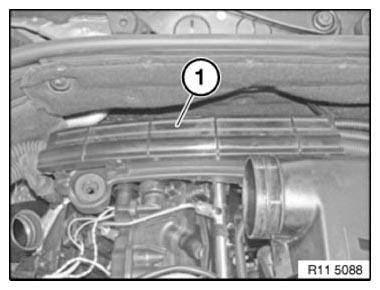

Unclip cable duct (1) and lay to one side.

Fig 1: Identifying Cable Duct

Courtesy of BMW OF NORTH AMERICA, INC.

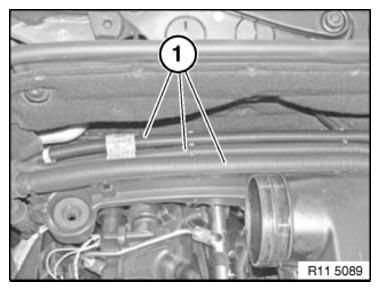

Unclip lines (1) and lay to one side.

Fig 2: Identifying Ignition Coil Cover Lines

Courtesy of BMW OF NORTH AMERICA, INC.

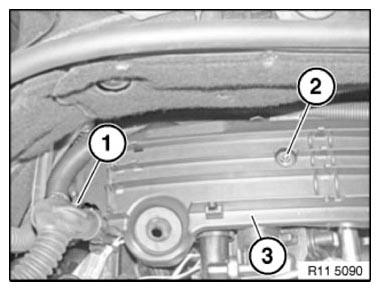

Release screws (1 and 2).

Tightening torque 11 12 7AZ .

Remove rear ignition coil cover (3) towards top.

Fig 3: Identifying Rear Ignition Coil Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
