11 00 Removing and installing/replacing front ignition coil cover (N54)

Release screws (1 and 2).

Tightening torque 11 12 7AZ .

Fig 1: Identifying Front Ignition Coil Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully release connections for vacuum lines (1 and 2).

Installation:

Connections (1 and 2) must snap audibly into place!

Fig 2: Identifying Vacuum Lines Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Raise front ignition coil cover (1) approx. 5 - 10 cm (see arrow).

Carefully release vacuum line connection (2).

Installation:

Connection (2) must snap audibly into place!

Remove ignition coil cover (1).

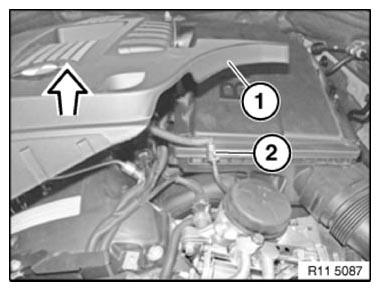

Fig 3: Raising Front Ignition Coil Cover

Courtesy of BMW OF NORTH AMERICA, INC.
