22 11 011 Replacing left engine mount (N55)

Necessary preliminary work

• REMOVE  left engine support arm.
• Remove stiffening strut.

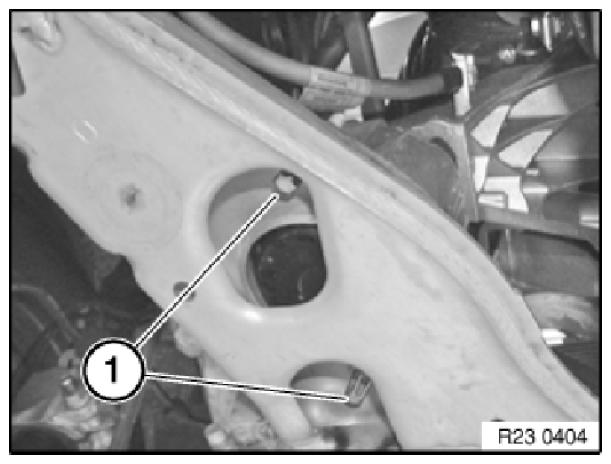

Release screws (1) and remove engine mount.

Tightening torque 22 11 1AZ .

Installation note:

Rubber part (1) of engine mount must point to centre of vehicle.

Engine mount identification:

Right engine mount

• Even component number

Left engine mount

• Odd component number
  Fig 2: Identifying Rubber Part Of Engine Mount

  Courtesy of BMW OF NORTH AMERICA, INC.
