22 11 110 Replacing left engine support arm (N55)
Necessary preliminary work
- Secure engine in INSTALLATION POSITION
- Remove CHARGE AIR DUCT .

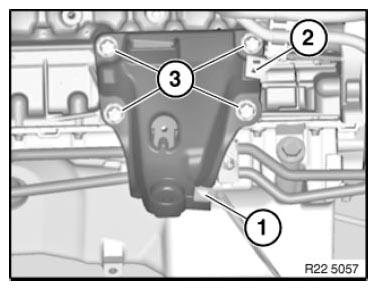

Release earth strap (1) from engine support arm.
Release screw (2) and remove holder.
Release screws (3).
Remove engine support arm.
Tightening torque 22 11 3AZ .
Graphic, N54 engine.
