32 33 000 Removing and installing/replacing steering wheel
NOTE:
Wheel/chassis alignment is not
necessary after the steering wheel has been removed and installed or replaced.
Necessary preliminary tasks
- Remove AIRBAG UNIT .
Move wheels/steering wheel into straight-ahead position.
Release screw and remove steering wheel.
Installation:

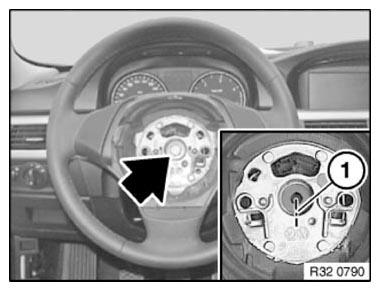

Align steering wheel using marking (1) to steering column and attach.
Make sure connecting lead(s) is/are correctly laid.
Tightening torque 32 33 1AZ .
Replacement
- Modify multifunction steering wheel decorative trims/switches . See 61 31 221 REMOVING AND INSTALLING/REPLACING BOTH MULTIFUNCTION STEERING WHEEL SWITCHES or 3233... REPLACING DECORATIVE TRIMS FOR STEERING WHEEL .
