65 13 195 Removing and installing/replacing rear treble speaker (in rear shelf)

Necessary preliminary tasks:

• Remove REAR MID-RANGE SPEAKER .

Disconnect plug connection (1).

Release screws (2).

Remove rear treble speaker (3) from rear shelf (4).

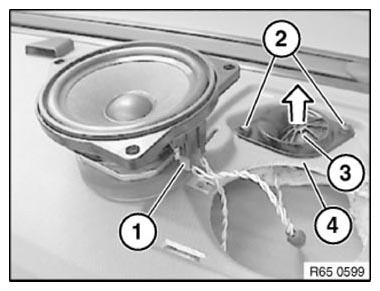

Fig 1: Identifying Plug Connection, Rear Treble Speaker, Rear Shelf And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
