65 13 188 Removing and installing/replacing rear mid-range speaker (in rear shelf)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

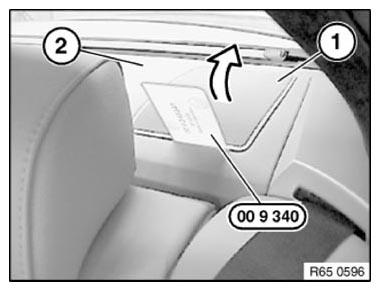

Lever speaker cover (1) with special tool 00 9 340 out of rear shelf (2).

Fig 1: Identifying Lever Speaker Cover And Rear Shelf

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

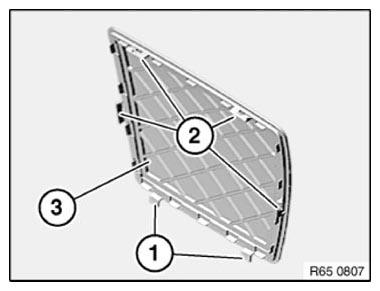

Lugs (1) and locks (2) of speaker cover (3) must not be damaged.

Fig 2: Identifying Speaker Cover, Lugs And Locks

Courtesy of BMW OF NORTH AMERICA, INC.

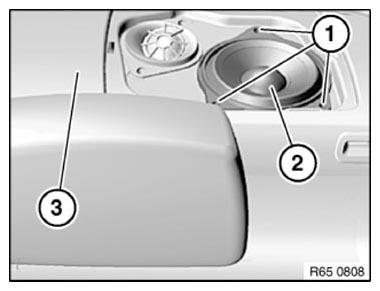

Release screws (1).

Remove mid-range speaker (2) upwards from rear shelf (3).

Disconnect associated plug connections and remove mid-range speaker (2).

Fig 3: Identifying Mid-Range Speaker, Rear Shelf And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
