65 13 050 Removing and installing/replacing speaker (treble speaker in quarterlight mirror)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: For purposes of clarity, cover on door window frame is removed.

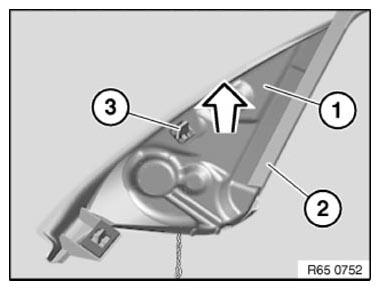

Remove foam wedge (1) in direction of arrow from door window frame (2).

Installation:

Fit foam wedge (1) exactly over guide (3).

Fig 1: Remove Door Window Frame Foam Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

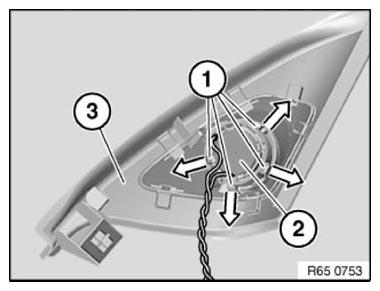

Unlock catches (1) and remove speaker (2) from cover on door window frame (3).

Disconnect plug connection and remove speaker.

Fig 2: Removing Door Window Frame Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
