65 11 070 Removing and installing/replacing CD changer

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

NOTE: Follow instructions for HANDLING OPTICAL FIBRES .

Release screws (1).

Pull CD changer (2) forward and unlock and disconnect plug connections.

Remove CD changer (2) complete with holder.

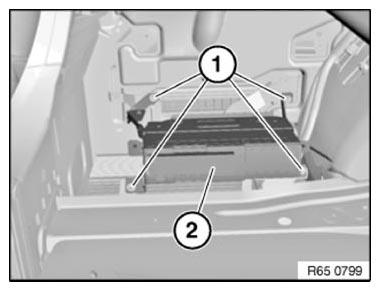

Fig 1: Identifying CD Changer And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and remove holder (3) from CD changer (2).

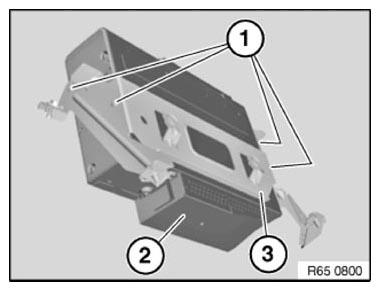

Fig 2: Identifying Holder, CD Changer And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
