65 50 011 Removing and installing (replacing) video module for on-board monitor

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

NOTE: Follow instructions for HANDLING OPTICAL FIBRES .

Unfasten screws (2) and nuts (3).

Pull back video module for on-board monitor (1) and disconnect plug connections.

Remove video module for on-board monitor (1) complete with holder.

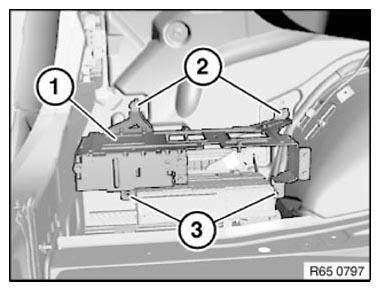

Fig 1: Identifying On-Board Monitor, Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (3) and remove holder (2) from video module for on-board monitor (1).

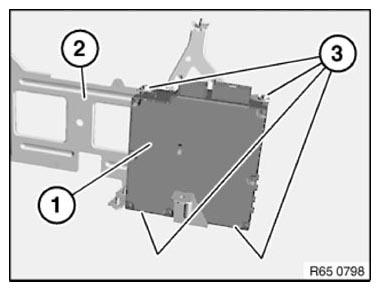

Fig 2: Identifying Holder, On-Board Monitor And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
