41 14 511 Rear Left Wheel Arch Complete Replacement (Rear Left Side Panel Removed): Notes
WARNING: This page is about a different variant/trim than selected.
Read contents of BODY, GENERAL .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Use only approved SPOT-WELDING APPARATUS for repairs.
Place vehicle on straightening bench.

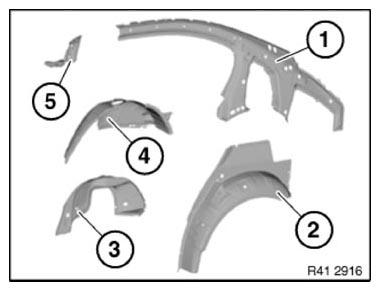

Following new body parts are required (see ELECTRONIC PARTS CATALOGUE ):
- (1) C-pillar reinforcement
- (2) Wheel arch, outer, rear
- (3) Support, wheel arch
- (4) Wheel arch, rear, inner half
- (5) Support, frame side member
- (6) Shaped part, C-pillar, outer (not shown)
- (7) Rear entrance shaped part (not shown)
