41 14 502 Rear Left Outer Wheel Arch Section Replacement (Rear Left Side Panel Removed): Notes
WARNING: This page is about a different variant/trim than selected.
Read contents of BODY, GENERAL .
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only approved SPOT-WELDING APPARATUS for repairs.

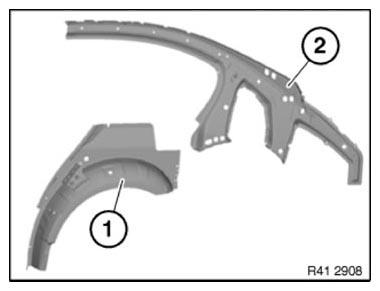

Following new body parts are required (see ELECTRONIC PARTS CATALOGUE ):
- (1) Outer wheel arch section, rear
- (2) C-pillar reinforcement
- (3) Shaped part, C-pillar, outer (not shown)
- (4) Rear entrance shaped part (not shown)
