41 11 516 Front Left Or Right Carrier Support Replacement (Partial Replacement, Front Side Panel Removed): Notes
WARNING: This page is about a different variant/trim than selected.
Read contents of BODY, GENERAL .
NOTE:
Observe (REPAIR STAGE 2) procedure!
Carry over schematic diagram to the relevant vehicle type.
Carry over schematic diagram to the relevant vehicle type.
Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

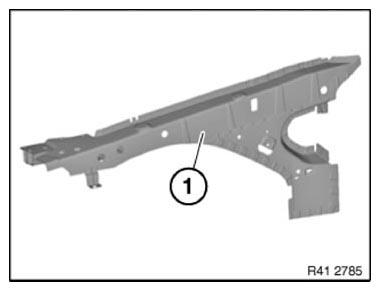

- (1) Carrier support, wheel arch, outer
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5a | 1 |
| Blind rivets N1 | 2 |
| Blind rivets N3 | 6 |
| Punch rivets N5 | 12 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
