41 11 023 Front Section Of Engine Support To Left Wheel Arch Replacement: Notes
WARNING: This page is about a different variant/trim than selected.
Observe procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Place vehicle on straightening bench.

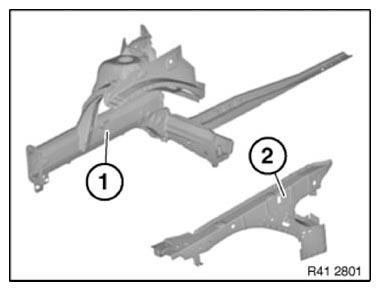

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):
- (1) Wheel arch, front
- (2) Carrier support, outer wheel arch section
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N1 | 41 |
| Punch rivets N5 | 39 |
| EMC screws | 2 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
