41 35 101 Rear Left Side Panel Replacement: Notes
WARNING: This page is about a different variant/trim than selected.
Read contents of BODY, GENERAL .
STRIP DOWN vehicle.
Procedure OBSERVE repair stage 2!
The following body new parts are required (refer to ELECTRONIC PARTS CATALOGUE )

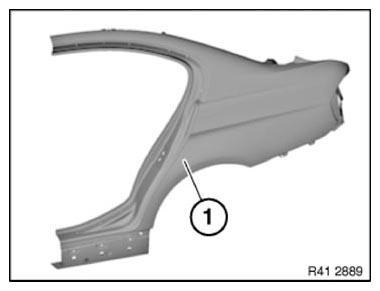

- (1) Rear side wall
- Reinforcement plate, side sill
- Reinforcement plate, C-pillar
- Mounting nuts
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| Adhesive K5a | 1 |
| Sealant D1 | |
| Blind rivets N3 | 17 |
| Punch rivets N4 | 26 |
| EMC screws | 3 |
| Cleaning agent R1 | 1 |
