41 11 043 Front Section Of Left Engine Support Replacement: Notes

WARNING: This page is about a different variant/trim than selected.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Place vehicle on straightening bench.

Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

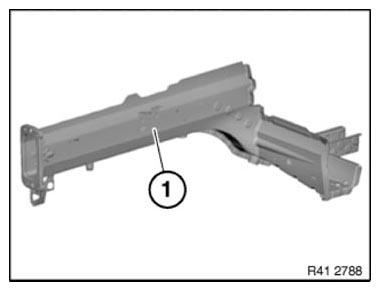

(1) Engine carrier, front

Fig 1: Identifying Engine Carrier
Courtesy of BMW OF NORTH AMERICA, INC.

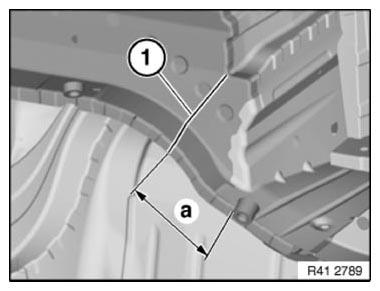

Mark severance cut (1) in accordance with measurement a and cut engine support.

IMPORTANT: Cut outer metal sheet only.

Measurement a=130 mm from front edge of sleeve

Installation:

Weld in REINFORCING PANELS at all severance cuts.

Fig 2: Identifying Front Edge Of Sleeve Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

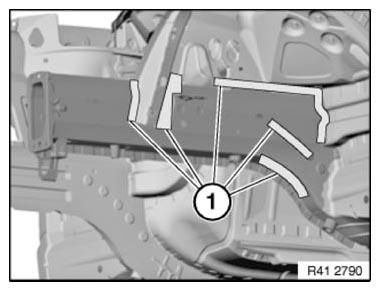

Open weld joints in areas (1).

Fig 3: Identifying Weld Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

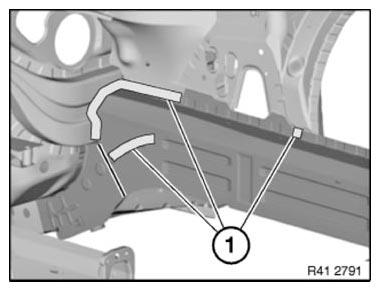

Open weld joints in areas (1).

Fig 4: Identifying Weld Joints In Area

Courtesy of BMW OF NORTH AMERICA, INC.
