41 11 028 Left Engine Support Replacement (Partial Replacement Before Front Axle): Notes
WARNING: This page is about a different variant/trim than selected.
Observe procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
Place vehicle on straightening bench.
Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

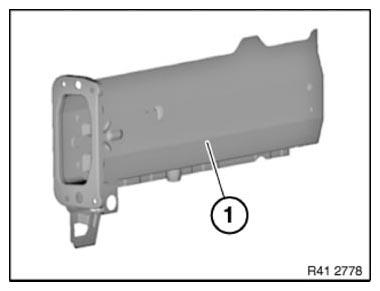

- (1) Partial section, engine support
- (2) Repair element (not shown)
- (3) Screw (not shown)
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K1 | 1 |
| Blind rivets N2 | 8 |
| Cleaning agent R1 | 1 |
| Cavity sealing wax remover | 1 |
| Sealant D1 |
