41 34 041 Tail Panel Complete Replacement: Notes
WARNING: This page is about a different variant/trim than selected.
Read contents of BODY, GENERAL .
STRIP DOWN vehicle.
Procedure OBSERVE repair stage 2!
Following new body parts are required (refer to ELECTRONIC PARTS CATALOGUE ):

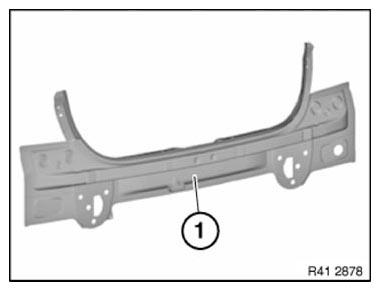

- (1) Rear trim panel
Following CONSUMABLES are required:
| Material | Quantity |
|---|---|
| Adhesive K5b | 1 |
| R1 cleaning agent | 1 |
| Blind rivets N3 | 16 |
| Punch rivets N4 | 6 |
| Punch rivets N5 | 8 |
| EMC screws | 9 |
| Sealant D1 | |
| Cavity wax remover |
